LM340T-5.0 Texas Instruments Linear Voltage Regulator IC Guide

1. Introduction: The LM340T-5.0 Voltage Regulator

In the vast landscape of electronic components, stability is often paramount. For circuit designers and hobbyists alike, ensuring a clean , consistent power supply is a foundational requirement for reliable operation. Enter the Texas Instruments LM340T-5.0, a venerable and widely trusted positive fixed linear voltage regulator. This IC (Integrated Circuit) has earned its reputation as a workhorse, providing a stable 5-volt output with remarkable resilience.

Whether you’re powering sensitive digital logic, embedded systems, or general-purpose electronics, the LM340T-5.0 offers a straightforward, robust solution. This comprehensive guide will delve into its core features, design philosophy, practical applications, and what makes it a preferred choice for countless projects, solidifying its place as an essential component in any electronics toolkit.



2. Understanding Linear Voltage Regulators

Before diving deep into the specifics of the LM340T-5.0, it’s beneficial to understand the fundamental role of a linear voltage regulator. Simply put, these devices are designed to maintain a constant output voltage, regardless of fluctuations in the input voltage or changes in the load current. They achieve this by operating in their linear region, essentially acting like a variable resistor that dissipates excess voltage as heat.

Unlike switching regulators, which convert voltage more efficiently but can introduce noise, linear regulators are prized for their low noise output and simplicity. This makes them ideal for applications where signal integrity is crucial, or where the power supply needs to be as clean as possible. The LM340T-5.0 excels in this regard, offering a reliable, low-noise 5V output that is critical for many modern electronic systems.



3. The Price Range of LM340T-5.0

According to the latest market conditions, the price range for LM340T-5.0 is approximately USD0.419 – USD0.849 per piece. The specific price may vary depending on the following factors:

Purchase quantity (bulk purchases typically offer more favorable unit prices)

Supplier and regional differences

We are very strong on Electronic Components Distribution for more than 12 years. We can make sure that all the components from our company are 100% Original and New! Please feel free to contact us if you have any needs.

4. Key Features and Specifications of the LM340T-5.0

The LM340T-5.0 is a 3-terminal positive voltage regulator, meaning it provides a positive fixed output voltage relative to a common ground. Its core specifications highlight its robust design:

• Output Voltage:A precise and stable 5V.
• Output Current:Capable of delivering over 1.5 Amperes (A) of output current, provided adequate heat sinking is implemented. This makes it suitable for a wide range of loads, from small microcontrollers to more power-hungry devices.
• Input Voltage:Designed to handle input voltages up to 35V, offering substantial headroom and making it adaptable to various power sources.
• Package Type:Typically housed in a TO-220-3 package, which is known for its excellent thermal performance and ease of mounting on heatsinks.
• Internal Protections:Equipped with a suite of internal protection features that contribute to its “indestructible” reputation.

Here’s a snapshot of its primary specifications:

Feature	Specification	Benefit for Designers
Output Voltage	5V (Fixed)	Reliable power for 5V logic and systems.
Output Current	1.5A (Max)	Powers a wide range of devices, from small to moderate loads.
Input Voltage	Up to 35V	Flexible power source compatibility, robust against input variations.
Package Type	TO-220-3	Easy to mount, excellent thermal dissipation when paired with heatsink.
Internal Protections	Current-limiting, thermal shutdown, safe-area compensation	Enhanced durability and protection against circuit faults.

5. LM340T-5.0 Datasheet Download

• LM340T-5.0 Datasheet: LM340T-5.0



6. Unpacking the “Indestructible” Design

One of the most compelling aspects of the LM340T-5.0, as highlighted by Texas Instruments itself, is its “essentially indestructible” nature. This isn’t just marketing hype; it’s a testament to the sophisticated internal protection mechanisms engineered into the IC. These features are crucial for safeguarding both the regulator and the downstream components it powers:

• Internal Current-Limiting:This feature prevents the output current from exceeding a safe level, even if the load demands more current than the regulator can provide. In the event of an accidental short circuit or an overloaded output, the current-limiting mechanism will kick in, protecting the regulator from damage.
• Thermal Shutdown:As linear regulators dissipate excess voltage as heat, prolonged operation at high currents or inadequate heat sinking can lead to overheating. The LM340T-5.0 incorporates a thermal shutdown circuit that monitors the IC’s internal temperature . If it rises above a predetermined safe threshold, the regulator will automatically shut down, preventing thermal runaway and permanent damage. Once the temperature drops to a safe level, the regulator will typically resume operation.
• Safe-Area Compensation: This mechanism dynamically adjusts the current-limiting threshold based on the output voltage and temperature, ensuring that the transistor operates within its safe operating area (SOA). This prevents the internal pass transistor from being over-stressed, particularly under conditions of high input -output voltage differential and high current.

These integrated protections make the LM340T-5.0 incredibly robust and forgiving, significantly reducing the risk of component failure due to unexpected electrical conditions. This is a significant advantage in both prototyping and production environments, where unexpected faults can occur.



7. Typical Applications and Versatility

The versatility of the LM340T-5.0 extends to a wide array of applications, making it a staple in numerous electronic designs:

• Local (On-Card) Regulation:One of its primary intended uses is for “on-card” regulation. In larger systems, a single central power supply can lead to noise and voltage drop issues across long PCB traces. Placing an LM340T-5.0 directly on a circuit board, close to the components it powers, effectively eliminates these problems by providing clean, regulated power right where it’s needed. This is particularly crucial for sensitive analog circuits or high-speed digital logic that demand stable voltage.
• Fixed Voltage Power Supplies:It’s an excellent choice for general-purpose 5V fixed voltage power supplies, commonly found in embedded systems, microcontrollers (like Arduino boards), and various sensors.
• Adjustable Output Voltage and Current:While primarily a fixed voltage regulator, the LM340 family, including the LM340T-5.0, can be used with external components to create adjustable output voltage and current configurations. By adding external resistors and other components, designers can extend its functionality beyond its fixed 5V output , demonstrating its flexibility.
• Powering Digital Logic:Given the widespread use of 5V TTL and CMOS logic, the LM340T-5.0 is an ideal choice for providing stable power to these circuits, ensuring their correct operation and preventing glitches due to power fluctuations.
• Battery-Powered Devices:For devices powered by higher voltage batteries (e.g., 9V or 12V), the LM340T-5.0 can efficiently step down and regulate the voltage to a steady 5V for internal components.

Its ease of use, requiring minimal external components, further enhances its appeal across these diverse applications. Input bypassing is only strictly necessary if the regulator is placed far from the main filter capacitor, improving transient response, while output bypassing is generally not critical but can also enhance transient behavior.

8. Packaging and Pinout Overview

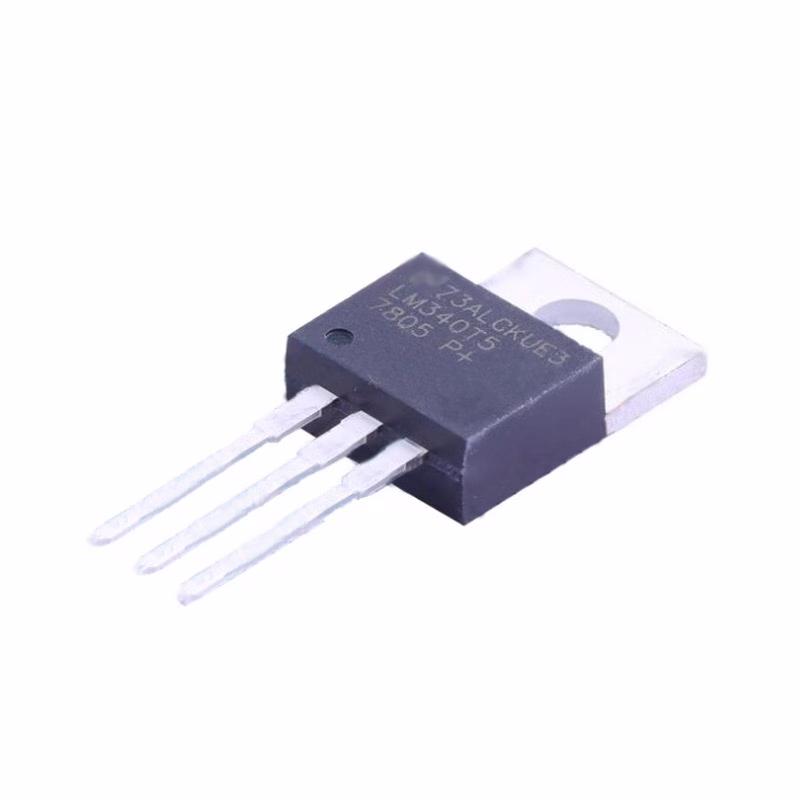

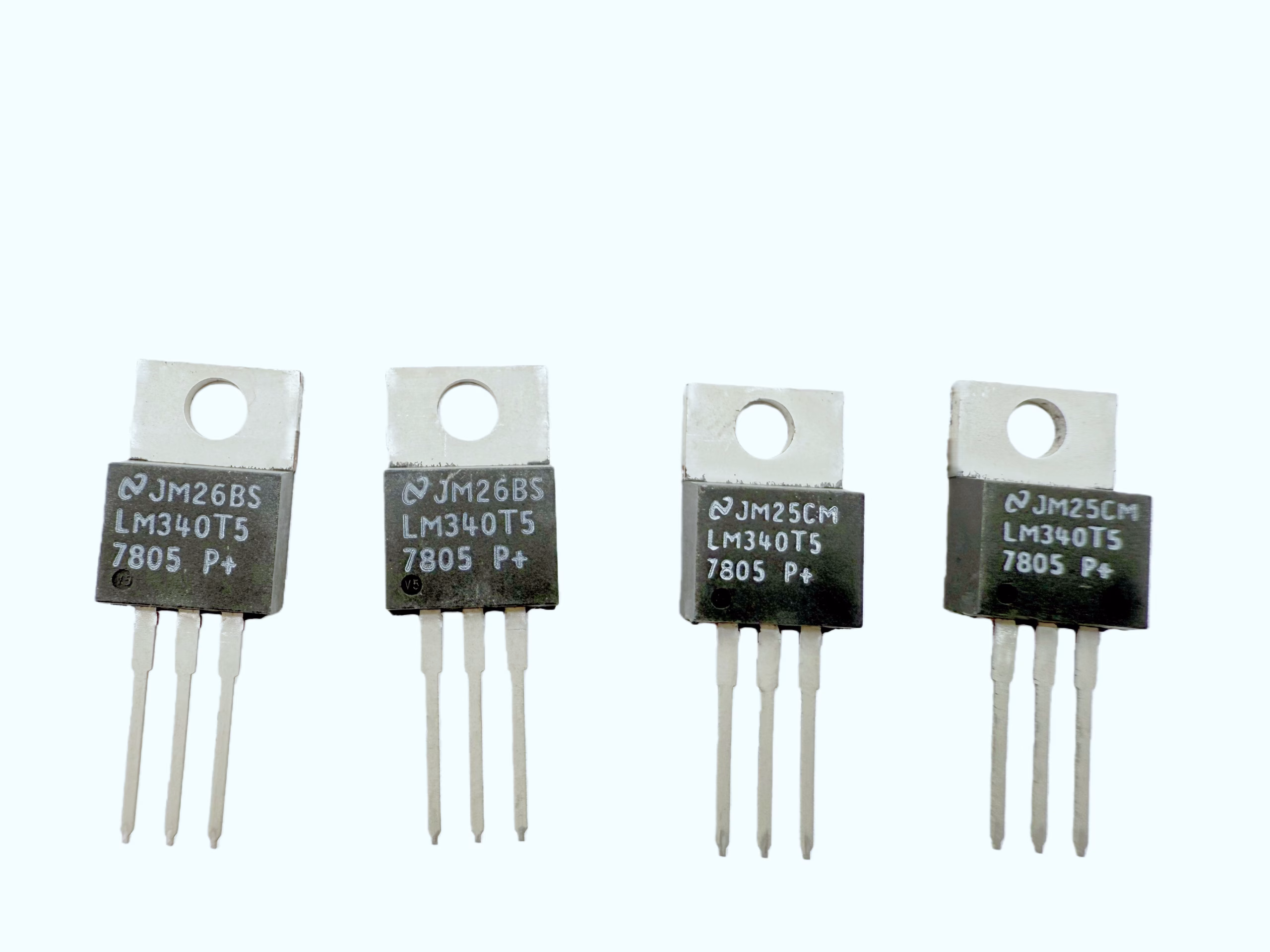

The LM340T-5.0 is most commonly found in the TO-220-3 package. The TO-220 is a widely recognized and utilized package for power devices, designed for through-hole mounting. Its distinctive metal tab facilitates mounting to a heatsink, which is often crucial for dissipating the heat generated during operation, especially when delivering higher currents or under significant input-output voltage differentials.

While specific datasheets provide precise pin numbering, the typical pinout for a 3-terminal positive linear voltage regulator in a TO-220 package follows a standard configuration:

• Pin 1 (Input):Connects to the unregulated DC input voltage.
• Pin 2 (Ground):The common ground reference for both input and output. This pin is often connected to the metal tab as well for thermal conduction.
• Pin 3 (Output):Provides the regulated 5V DC output.

Understanding this standard pinout makes it straightforward to integrate the LM340T-5.0 into circuit designs. Always refer to the official Texas Instruments datasheet for the most accurate and up-to-date pinout and electrical characteristics to ensure proper implementation and safety.



9. Sourcing and Availability

Thanks to its popularity and long-standing presence in the electronics market, the LM340T-5.0 is widely available from major electronic component distributors. Retailers like yt-electronic.com list the LM340T-5.0 as an actively stocked item, often available for immediate shipment. This widespread availability ensures that designers and manufacturers can easily procure the components needed for their projects, whether for a single prototype or for large-scale production runs.



10. LM340T-5.0 vs. Other Regulators: Why Choose This IC?

With an abundance of voltage regulators available today, why does the LM340T-5.0 continue to be a top choice for many engineers and hobbyists? The answer lies in its unique balance of features and benefits:

• Simplicity:It requires minimal external components, making circuit design straightforward and reducing PCB complexity and cost.
• Robustness:The internal current-limiting, thermal shutdown, and safe-area compensation circuits provide an exceptional level of protection against common circuit faults, leading to highly reliable systems.
• Low Noise:As a linear regulator, it inherently offers lower output noise compared to switching regulators, which is critical for noise-sensitive applications.
• Cost-Effectiveness:Given its reliability and robust feature set, the LM340T-5.0 offers excellent value, making it an economical choice for stable 5V regulation.
• Established Reputation:Being part of the LM340/LM7805 family, it benefits from decades of proven performance and extensive documentation, making it easy to integrate and troubleshoot.
• High Current Capability:The ability to deliver up to 1.5A is significant for a fixed linear regulator, providing ample power for many contemporary electronic devices.

While newer, more efficient switching regulators or low drop out (LDO) regulators exist, the LM340T-5.0 remains a go-to option when simplicity, low noise, robust protection, and a fixed 5V output are the primary requirements, especially where space and efficiency are not the absolute top priorities.



11. LM340T-5.0 FAQs

12. Summary

The Texas Instruments LM340T-5.0 stands as a testament to effective, reliable power regulation. Its combination of a stable 5V output, robust 1.5A current capability, and “essentially indestructible” internal protection mechanisms make it an indispensable component for a vast array of electronic applications. From local on-card regulation to general-purpose fixed voltage supplies, this monolithic 3-terminal positive voltage regulator delivers consistent performance with minimal external component.

Its enduring popularity is a reflection of its proven track record and the confidence it instills in designers. For anyone seeking a dependable, easy-to-implement solution for 5V power stability, the LM340T-5.0 remains a powerful and practical choice, cementing its legacy as a cornerstone of electronic design.
