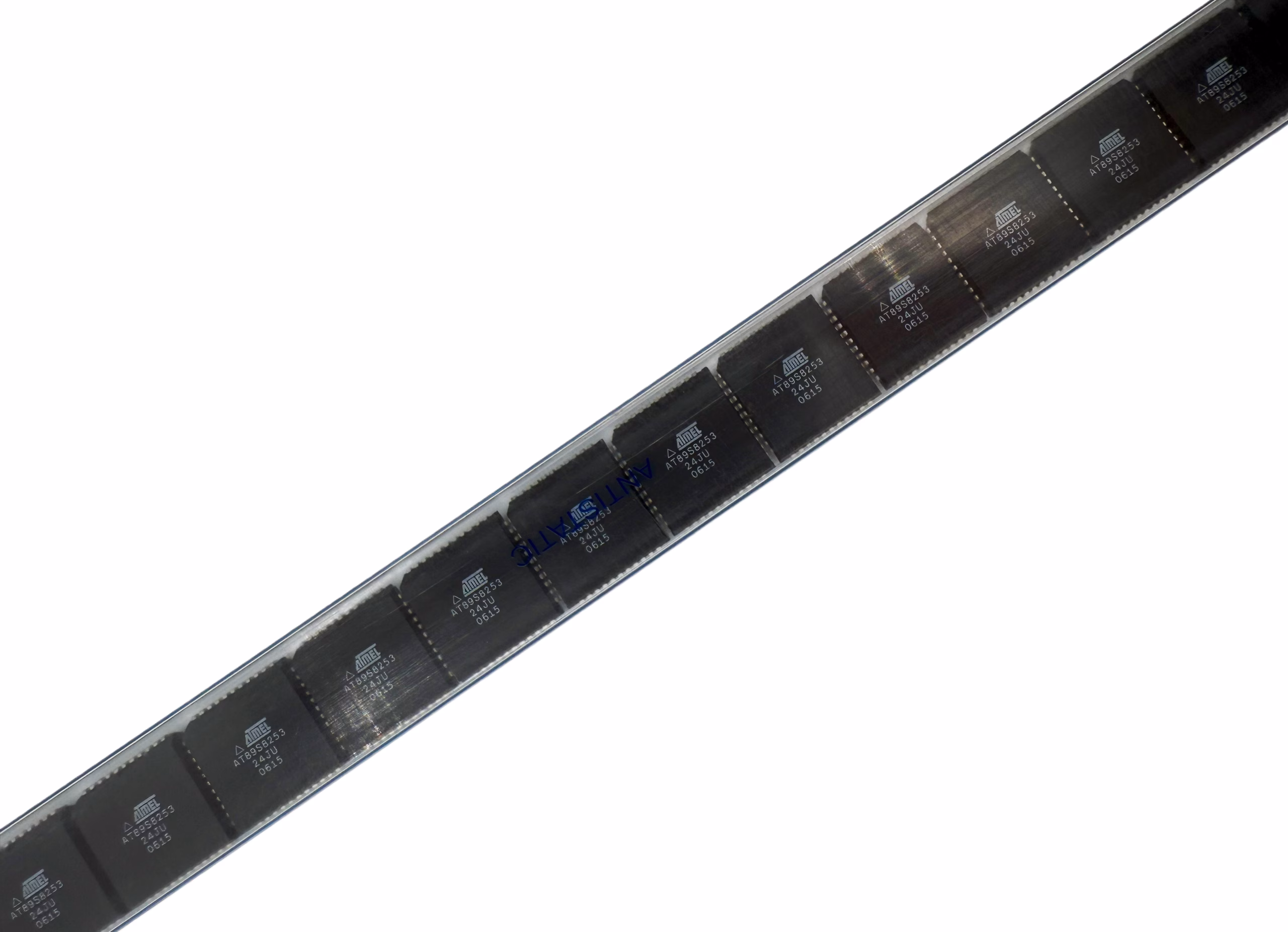

AT89S8253-24JU Microchip ATMEL Microcontroller IC Guide

1. Introduction: Unlocking Embedded Potential

In the vast landscape of embedded systems, selecting the right microcontroller is paramount to project success. Engineers and hobbyists alike seek components that offer a robust blend of performance, efficiency, and flexibility. Enter the AT89S8253-24JU, a versatile 8-bit microcontroller from Microchip Technology that has carved a niche for itself in countless applications. This guide will take a deep dive into its capabilities, exploring its architecture, key features, and why it remains a compelling choice for a wide array of embedded designs.

From industrial control systems to consumer electronics, the AT89S8253-24JU provides a solid foundation for designs requiring a compact yet powerful processing unit. Its combination of In-System Programmable (ISP) Flash memory and robust EEPROM data storage, coupled with Microchip’s high -density nonvolatile memory technology, makes it a reliable workhorse. Whether you’re a seasoned embedded systems developer or just starting, understanding the nuances of this specific Microchip microcontroller can significantly enhance your project development process.

2. The AT89S8253-24JU: A Core Overview

The AT89S8253-24JU is a high-performance, low-power CMOS 8-bit microcontroller built on the venerable 8051 instruction set architecture, known for its efficiency and ease of use. Manufactured by Microchip Technology, a leader in embedded solutions, this device integrates a significant amount of on-chip memory and a rich set of peripherals, making it a powerful standalone solution for many applications. Its design focuses on delivering robust performance while maintaining low power consumption, a critical factor for battery-operated devices and energy-efficient designs.

At its heart, the AT89S8253-24JU operates at a clock speed of up to 24 MHz, providing ample processing power for real-time control and data manipulation tasks. The ‘JU’ suffix in its part number typically indicates a specific package type, in this case, a 44-pin Plastic Leaded Chip Carrier (PLCC). This package offers a good balance between footprint and pin count, suitable for surface-mount assembly, which is common in modern PCB designs. The combination of its core capabilities and physical form factor makes it an attractive choice for compact and integrated solutions.



3. The Price Range of AT89S8253-24JU

According to the latest market conditions, the price range for AT89S8253-24JU is approximately USD4.125 – USD7.995 per piece. The specific price may vary depending on the following factors:

Purchase quantity (bulk purchases typically offer more favorable unit prices)

Supplier and regional differences

We are very strong on Electronic Components Distribution for more than 12 years. We can make sure that all the components from our company are 100% Original and New! Please feel free to contact us if you have any needs.

4. Key Features and Specifications

The AT89S8253-24JU boasts a set of features that contribute to its versatility and appeal in various embedded projects. Let’s break down its core specifications:

4.1 Processor Core and Speed

• 8-bit Microcontroller:Based on the industry-standard 8051 architecture, offering a well-understood and widely supported instruction set.
• Operating Frequency:Capable of running at up to 24 MHz, providing sufficient computational power for time-critical operations and complex control algorithms.

4.2 Memory Architecture

Memory is a critical component for any microcontroller, and the AT89S8253-24JU is well-equipped in this regard:

• 12KB In-System Programmable (ISP) Flash Program Memory:This non-volatile memory allows for easy firmware updates directly on the circuit board, reducing development time and facilitating field upgrades. The ’12K x 8′ notation signifies 12 Kilobytes, each byte addressable.
• 2KB EEPROM Data Memory:This Electrically Erasable Programmable Read-Only Memory is crucial for storing configuration data, calibration values, or other parameters that need to persist even when power is removed, without requiring program re-flashing.
• Internal RAM:While not explicitly detailed in all summaries, 8051-based microcontrollers typically include a small amount of internal RAM (e.g., 256 bytes) for data manipulation during program execution.

4.3 Low Power Design

One of the significant advantages of this Microchip microcontroller is its focus on low-power operation. This makes it suitable for applications where energy efficiency is crucial, such as battery-powered devices or systems aiming for minimal environmental impact. Its CMOS fabrication process inherently contributes to lower power consumption compared to older technologies.

4.4 Package and Operating Voltage

• Package:44-PLCC (Plastic Leaded Chip Carrier, 16.6×16.6 mm footprint). This surface-mount package is robust and widely used.
• Operating Voltage:Typically operates within a wide voltage range, often 2.7V to 5.5V, providing flexibility for integration into various power supply environments.

4.5 Peripheral Set (General 8051-compatible)

While specific peripherals are not fully detailed in the provided summaries, an 8051-compatible microcontroller like the AT89S8253-24JU would typically include:

• Multiple General Purpose I/O (GPIO) pins for interfacing with external components.
• Timers/Counters for timing events and generating waveforms.
• Serial Communication Interfaces (UART) for communication with other devices (e.g., PCs, sensors).
• External Interrupts for responding to asynchronous events.

4.6 Summary of Key Specifications

Here’s a quick overview of the AT89S8253-24JU’s primary specifications:

Feature	Specification	Benefit for Design
Microcontroller Core	8-Bit 8051	Widely understood, efficient instruction set
Max Clock Frequency	24MHz	Good processing speed for real-time tasks
Program Memory	12KB ISP Flash	Easy field updates, non-volatile storage
Data Memory	2KB EEPROM	Retains critical data without power
RAM	256 Bytes (typical for 8051)	Fast data manipulation during execution
Operating Voltage	2.7V – 5.5V	Flexible power supply compatibility
Package Type	44-PLCC	Surface-mount, good pin density
Technology	CMOS	Low-power consumption, high performance

5. AT89S8253-24JU Datasheet Download

• AT89S8253-24JU Datasheet: AT89S8253-24JU



6. Powering Innovation: Typical Applications

The robust feature set and 8-bit architecture of the AT89S8253-24JU make it an excellent fit for a diverse range of embedded systems. Its balance of memory, processing power, and low-power characteristics allow it to shine in applications where cost-effectiveness and reliability are key.

• Industrial Control:Its reliability and real-time processing capabilities make it suitable for motor control, sensor interfacing, and process automation in factories and industrial equipment. The ability to update firmware in-system (ISP Flash) is particularly valuable in these environments.
• Consumer Electronics:From home appliances to remote controls, the AT89S8253-24JU can manage user interfaces, control peripherals, and execute programmed routines efficiently. The low-power nature is beneficial for devices running on batteries.
• Automotive Applications (Non-Critical):While not typically used for safety-critical systems, it can be found in non-critical automotive functions such as infotainment system control, lighting management, or dashboard displays.
• Security Systems:Access control panels, alarm systems, and sensor monitoring units can leverage its compact design and persistent data storage (EEPROM) for user codes or event logs.
• Smart Home Devices:Basic smart switches, environmental sensors, or simple control hubs can utilize this 8-bit microcontroller to gather data, communicate wirelessly (with external modules), and perform local decision-making.
• Data Acquisition Systems:Its ability to interface with various sensors and process data at 24MHz makes it suitable for low to medium-speed data logging and analysis.

7. Why Choose the AT89S8253-24JU for Your Project?

When faced with numerous microcontroller options, what makes the AT89S8253-24JU stand out? Several factors contribute to its enduring popularity:

• Proven 8051 Architecture:The 8051 core has been around for decades, meaning there’s a vast ecosystem of development tools, example code, and community support available. This significantly lowers the learning curve and accelerates development for those familiar with the architecture.
• In-System Programmability (ISP):The ISP Flash memory is a game-changer for development and deployment. It allows developers to flash new firmware without removing the chip from the circuit, facilitating rapid prototyping and efficient field updates. This reduces maintenance costs and increases system flexibility.
• EEPROM Data Storage:The integrated 2KB EEPROM provides a robust solution for non-volatile data storage. This is ideal for parameters that need to be saved even after power loss, such as calibration settings, user preferences , or accumulated data.
• Low Power, High Performance:The CMOS technology ensures that the AT89S8253-24JU consumes minimal power, making it an excellent choice for battery-operated devices or energy-conscious designs. Simultaneously, its 24MHz clock speed provides sufficient horsepower for a wide range of control and processing tasks.
• Microchip Reliability:As a product from Microchip Technology, the AT89S8253-24JU benefits from a reputation for quality, robust manufacturing processes, and long-term product availability.
• Cost-Effectiveness:For applications where an 8-bit microcontroller is sufficient, the AT89S8253-24JU often offers a more cost-effective solution compared to higher-end 16-bit or 32-bit MCUs, without compromising on essential features.



8. Availability and Support

The AT89S8253-24JU, like many Microchip microcontrollers, is widely available through major electronics distributors. Companies like DigiKey, LCSC, and others typically stock this component, ensuring accessibility for both large-scale production and individual prototyping needs. Microchip itself provides extensive documentation, including datasheets, application notes, and development tools, which are essential resources for engineers working with their products. The product page on Microchip’s website serves as a central hub for all relevant information and support.

When sourcing, ensure you are obtaining genuine parts from authorized distributors to guarantee quality and authenticity . The ‘AT89S8253-24JU’ part number specifically refers to the 24MHz version in a PLCC package, so verifying the full part number is crucial. Support for this device extends beyond documentation, with online forums and technical communities actively discussing 8051-based microcontrollers, offering peer-to-peer assistance for common challenges.



9. AT89S8253-24JU FAQs

10. Summary

The AT89S8253-24JU stands as a testament to the enduring utility of the 8-bit microcontroller, particularly those built on the robust 8051 architecture. As a low-power, high-performance CMOS device from Microchip Technology, it offers a compelling combination of 12KB of ISP Flash program memory and 2KB of EEPROM data memory. Operating at up to 24MHz and housed in a practical 44-PLCC package, it provides the core functionality needed for a vast array of embedded systems. Its in-system programmability, non-volatile data storage, and energy-efficient design make it a versatile and reliable choice for everything from industrial automation to consumer electronics, embodying Microchip’s commitment to quality and performance.



Key Takeaways

• The AT89S8253-24JU is an 8-bit Microchip microcontroller with a 24MHz clock, blending performance with energy efficiency.
• It features 12KB of ISP Flash memory for easy in-circuit firmware updates and 2KB of EEPROMfor persistent data storage.
• Based on the classic 8051 architecture, it benefits from extensive community support and development tools.
• Its low-power CMOS design makes it ideal for battery-operated and energy-conscious embedded systems.
• Available in a 44-PLCC package, it is suitable for surface-mount designs in various applications like industrial control, smart home, and consumer electronics.
