3314G-1-103E Bourns Trimmer Potentiometers Basic Guide

1. Introduction to Trimmer Potentiometers

In the intricate world of electronics, precise control over electrical signals is paramount. From fine-tuning audio circuits to calibrating sensors, engineers rely on components that allow for adjustable resistance. Among these, potentiometers play a crucial role, and a specific variant, the trimmer potentiometer, stands out for its compact size and ‘set-and-forget’ functionality. These tiny yet powerful devices are essentially variable resistors designed for infrequent adjustment, typically during manufacturing, calibration, or servicing of electronic equipment. They enable designers to “trim” a circuit’s performance to meet exact specifications, compensating for component tolerances or environmental variations.

While the broader category of adjustable potentiometers encompasses everything from large panel-mount volume controls to multi-turn precision devices, trimmer potentiometers, or “trimpots,” are generally smaller, often surface-mount, and intended for internal circuit adjustments. They are vital in countless applications where a specific resistance value needs to be precisely dialed in and then maintained. Understanding their characteristics and proper application is key to successful electronic design.



2. The Bourns 3314 Series: A Legacy of Precision

When it comes to high-quality adjustable potentiometers, Bourns is a name that consistently emerges at the forefront. With a long-standing reputation for innovation and reliability, Bourns has developed extensive lines of potentiometers, resistors, and other electronic components. The Bourns 3314 series potentiometers represent a cornerstone in their trimmer product portfolio, renowned for their compact design, robust construction, and excellent performance characteristics. This series is specifically engineered for surface mount technology (SMT), making it an ideal choice for modern, space-constrained electronic assemblies.

The 3314 series typically features cermet resistive elements, which offer superior stability, temperature coefficient, and power handling capabilities compared to carbon-based alternatives. Their design often incorporates features like top adjustment, allowing for easy tweaking even after assembly, and various lead styles, including the popular gull wing termination, to facilitate automated placement and soldering processes. This combination of material science and mechanical design ensures that Bourns trimmer potentiometers from the 3314 series provide the precision and durability demanded by today’s sophisticated electronic devices.



3. Deep Dive into the 3314G-1-103E Model

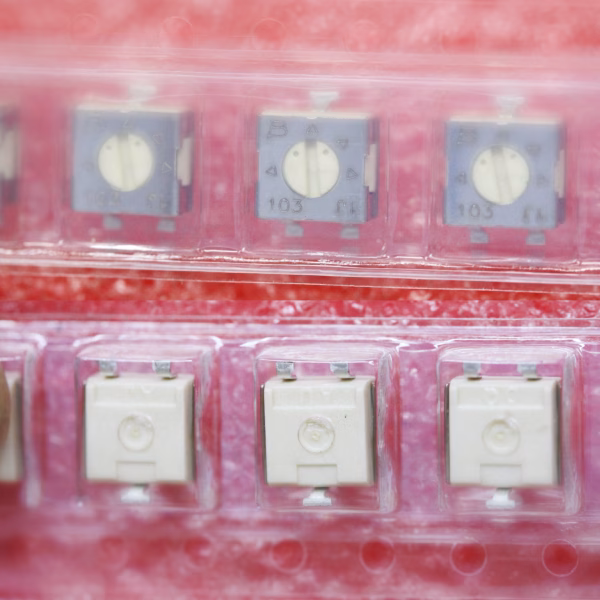

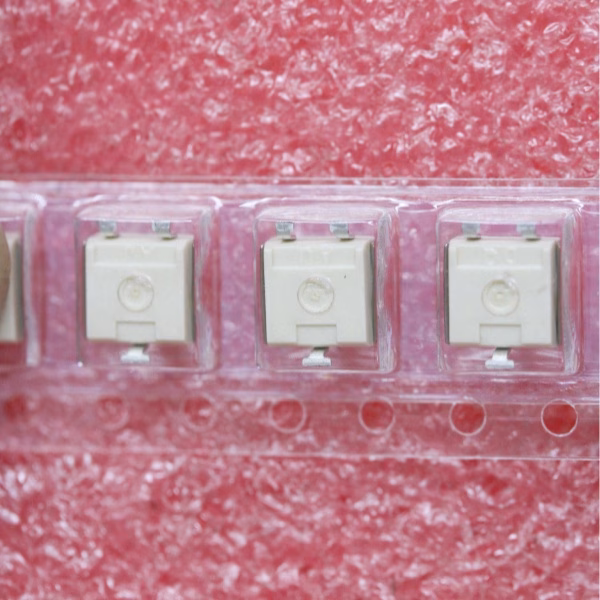

Among the many excellent components within the 3314 series, the 3314G-1-103E holds a prominent position, offering a specific set of characteristics that make it suitable for a wide range of applications. This particular model is a surface mount trimmer potentiometer with a nominal resistance of 10,000 ohms (10 kΩ), indicated by the “103” in its part number (10 x 10³ = 10,000). The “E” typically denotes a standard resistance tolerance, usually ±20%, which is common for trimmer potentiometers given their adjustable nature.

The “G” in 3314G signifies its lead style, which is a gull wing trimmer potentiometer configuration. This lead style is highly beneficial for automated pick-and-place manufacturing, allowing for reliable solder joint formation on printed circuit boards. Its compact, square package potentiometer form factor is designed to minimize board space, a critical factor in increasingly miniaturized electronic devices. Being a cermet trimmer potentiometer, the 3314G-1-103E leverages a ceramic-metal resistive track, providing excellent long-term stability and a low temperature coefficient of resistance (TCR), typically around ±100 ppm/°C. Furthermore, its top adjustment trimmer potentiometer design means that the adjustment screw is accessible from the top surface of the device, making it convenient for in-circuit tuning.

For detailed electrical and mechanical specifications, engineers often refer to the official datasheet. Here’s a summary of key specifications for the 3314G-1-103E:

Specification	Value	Description
Resistance	10 kΩ	Nominal resistance value.
Tolerance	±20%	Standard resistance tolerance.
Power Rating	0.25 W (1/4 W)	Maximum power dissipation at 70°C.
Adjustment Turns	1 (Single Turn)	Number of turns for full range adjustment.
Temperature Coefficient	±100 ppm/°C	Change in resistance per degree Celsius.
Operating Temperature	-55°C to 125°C	Ambient temperature range for operation.
Rotation Life	200 cycles	Number of times the wiper can be adjusted.
Contact Resistance Variation	1% or 3 Ω, whichever is greater	Measurement of resistance fluctuation during adjustment.
Insulation Resistance	100 MΩ min	Resistance between electrical elements and the case.
Dielectric Withstanding Voltage	250 VAC	Maximum voltage without breakdown.
Termination Style	Gull Wing	Lead configuration for surface mounting.

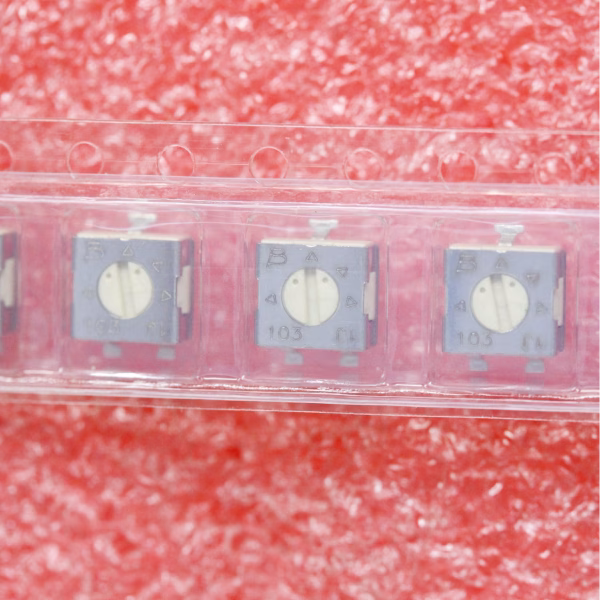

Adjustment Style	Top Adjustment	Adjustment mechanism located on the top surface.
Package Type	Square Package	Physical shape of the potentiometer.

4. 3314G-1-103E Datasheet Download

• 3314G-1-103E Datasheet: 3314G-1-103E



5. Key Features and Advantages

The 3314G-1-103E Bourns trimmer potentiometer offers several significant advantages that make it a preferred choice for electronic designers:

• Space-Saving Design:Its compact surface mount technology (SMT) and square package dimensions are crucial for miniaturized electronic devices, allowing for higher component density on Printed Circuit Boards(PCB).
• High Reliability and Stability:The cermet element ensures excellent long-term stability, minimal drift over time, and a good temperature coefficient, meaning its resistance changes little with temperature fluctuations. This makes it ideal for precision applications where environmental consistency cannot always be guaranteed.
• Automated Assembly Compatibility:The gull wing trimmer potentiometer pins are designed for automated pick-and-place manufacturing, streamlining production processes and reducing assembly costs.
• Precise Adjustment:As an adjustable potentiometer, its single-turn mechanism allows for quick yet precise tuning, making it easy to set the desired resistance value during calibration.
• Versatile Power Handling:With a 0.25 W power rating, it can handle a respectable amount of power for its size, suitable for a wide array of low-to-medium power circuit applications.
• Cost-Effective:Despite its high performance and robust construction, the 3314G-1-103E remains a cost-effective solution for fine-tuning circuits, offering excellent value for its capabilities.



6. Common Applications for the 3314G-1-103E

The versatility and precision of the 3314G-1-103E make it indispensable across numerous electronic sectors. As a reliable Variable Resistor, its ability to finely adjust circuit parameters allows it to be integrated into diverse applications:

• Industrial Control Systems:Used for sensor calibration, setting reference voltages, or tuning feedback loops in programmable logic controllers (PLCs) and other industrial automation equipment.
• Medical Devices:Critical in patient monitoring equipment, diagnostic tools, and therapeutic devices for precise calibration of sensitivity, gain, or output levels.
• Telecommunications Equipment:Employed in filters, amplifiers, and RF modules for frequency tuning, impedance matching, and signal level adjustment.
• Consumer Electronics:Found in everything from audio equipment (for minor gain adjustments) to portable devices where precise power management or display calibration is needed.
• Power Supplies and Converters:Used to set output voltage or current limits, providing stability and accuracy in various power management circuits.
• Test and Measurement Equipment:Essential for calibrating instruments, setting ranges, or fine-tuning sensor responses for accurate readings.
• Automotive Electronics:In components where sensor trim or specific circuit adjustments are required post-assembly to ensure optimal performance and adherence to strict specifications.

Its robust design and cermet trimmer potentiometer technology ensure reliability even in demanding environments, further expanding its application scope.



7. The price range of 3314G-1-103E

According to the latest market conditions, the price range for 3314G-1-103E is approximately USD0.205 – USD0.705. The specific price may vary depending on the following factors:

Purchase quantity (bulk purchases typically offer more favorable unit prices)

Supplier and regional differences

We are very strong on Electronic Components Distribution for more than 12 years. We can make sure that all the components from our company are 100% Original and New! Please feel free to contact us if you have any needs.

8. Installation and Design Considerations

Integrating the 3314G-1-103E into a design requires attention to a few key details to ensure optimal performance and longevity:

• PCB Layout:Given its surface mount trimmer potentiometer nature, proper pad layout is crucial for effective soldering. The gull wing trimmer potentiometer leads require specific pad geometries that accommodate the lead pitch and ensure good solder fillets. Refer to Bourns’ recommended land pattern for the 3314 series.
• Soldering Profile:The cermet element and plastic housing are sensitive to excessive heat. Adhere strictly to recommended reflow soldering profiles to prevent damage. Overheating can affect resistance stability and mechanical integrity.
• Adjustment Access:As a top adjustment trimmer potentiometer, ensure adequate clearance above the component for a small screwdriver or adjustment tool. If the potentiometer is intended for infrequent, factory-set adjustments, consider placing it in an accessible location on the PCB, even if internal to the enclosure.
• Circuit Integration:Like all variable resistors, consider the potentiometer’s maximum voltage and current ratings in the circuit. Ensure the wiper current does not exceed the specified limits to prevent wear and potential failure. It is often recommended to use the trimmer in a voltage divider configuration rather than as a simple series resistance to limit current through the wiper.
• Environmental Factors:While the 3314G-1-103E offers excellent temperature stability, extreme temperature cycling or exposure to harsh chemicals can still affect its performance. Design enclosures to protect the component from direct exposure to contaminants or excessive mechanical stress.
• Single-Turn vs. Multi-Turn:While the 3314G-1-103E is a single-turn device, suitable for applications needing quick adjustments, for extremely fine resolution, a multi-turn trimmer might be considered. However, the 3314G-1-103E often provides sufficient resolution for its intended “trimming” purposes.

9. 3314G-1-103E FAQs

10. Summary

The Bourns 3314G-1-103E is a highly reliable and precise surface mount trimmer potentiometer, embodying the quality and innovation Bourns is known for. With its 10 kΩ cermet resistive element, compact square package, gull wing pins, and convenient top adjustment, it stands as an exemplary adjustable potentiometer for a vast array of electronic circuits. Whether used for calibration in industrial controls, tuning in medical devices, or setting reference points in power supplies, its robust design and stable performance make it an indispensable variable resistor for engineers striving for circuit optimization and precision. Understanding its specifications and proper application ensures successful integration and long-term reliability in modern electronic designs.



Key Takeaways

• The 3314G-1-103E is a 10 kΩ, single-turn, surface mount cermet trimmer potentiometer from Bourns.
• Its compact square package potentiometer design with gull wing trimmerpotentiometer leads makes it ideal for automated SMT assembly and space-constrained PCBs.
• The cermet element ensures high stability, low temperature coefficient (±100 ppm/°C), and a 0.25 W power rating, suitable for precise circuit adjustments.
• Designed for “set-and-forget” applications, it’s crucial for calibration, fine-tuning, and compensating for component tolerances in various electronic systems.
• Proper PCB layout, soldering profiles, and considering adjustment access are vital for optimal performance and integration.
