12-22/BHS2C-C30/2C EVERLIGHT Light Emitting Diode(LED) Guide

1. Introduction: The Power of Miniature Illumination

In the rapidly evolving world of electronics, the demand for smaller, more efficient, and more powerful components is constant. From consumer gadgets to industrial controls, space is a premium, and every millimeter counts. Enter the EVERLIGHT 12-22/BHS2C-C30/2C Light Emitting Diode (LED) a true testament to the power of miniaturization. This Surface Mount Device (SMD) LED is engineered to meet the stringent requirements of modern design, offering a blend of compact form factor, robust performance, and broad applicability.

Unlike traditional lead-frame type components, the 12-22 series LED from EVERLIGHT ushers in an era of higher packing density and reduced storage space, ultimately paving the way for significantly smaller end equipment. This guide delves deep into the specifics of the 12-22/BHS2C-C30/2C, exploring its unique features, the myriad benefits it offers to designers and manufacturers, and the diverse applications where it excels.



2. Unpacking the 12-22/BHS2C-C30/2C: Core Features

The 12-22/BHS2C-C30/2C is not just another LED; it’s a precisely engineered electronic component designed for modern challenges. Manufactured by EVERLIGHT, a renowned name in optoelectronics, this particular model belongs to the 12-22 SMD LED series, distinguished by its compact design and high-quality illumination capabilities.

One of its most defining characteristics is its SMD nature. This means it’s designed to be mounted directly onto the surface of a Printed Circuit Board (PCB), eliminating the need for through-holes. This method is critical for achieving the miniaturization goals of contemporary electronics.

While the specific light emission color for the exact 12-22/BHS2C-C30/2C model isn’t explicitly detailed in all general descriptions, the series often includes multi-color types. For instance, a closely related variant, the 12-22/BHS2C-A01/2C, features orange and blue light-emitting diodes, with wavelengths of 605nm for orange and 470nm for blue , demonstrating the versatility within the 12-22 family. This multi-color capability, where present, allows for dynamic visual indicators and sophisticated backlighting solutions.

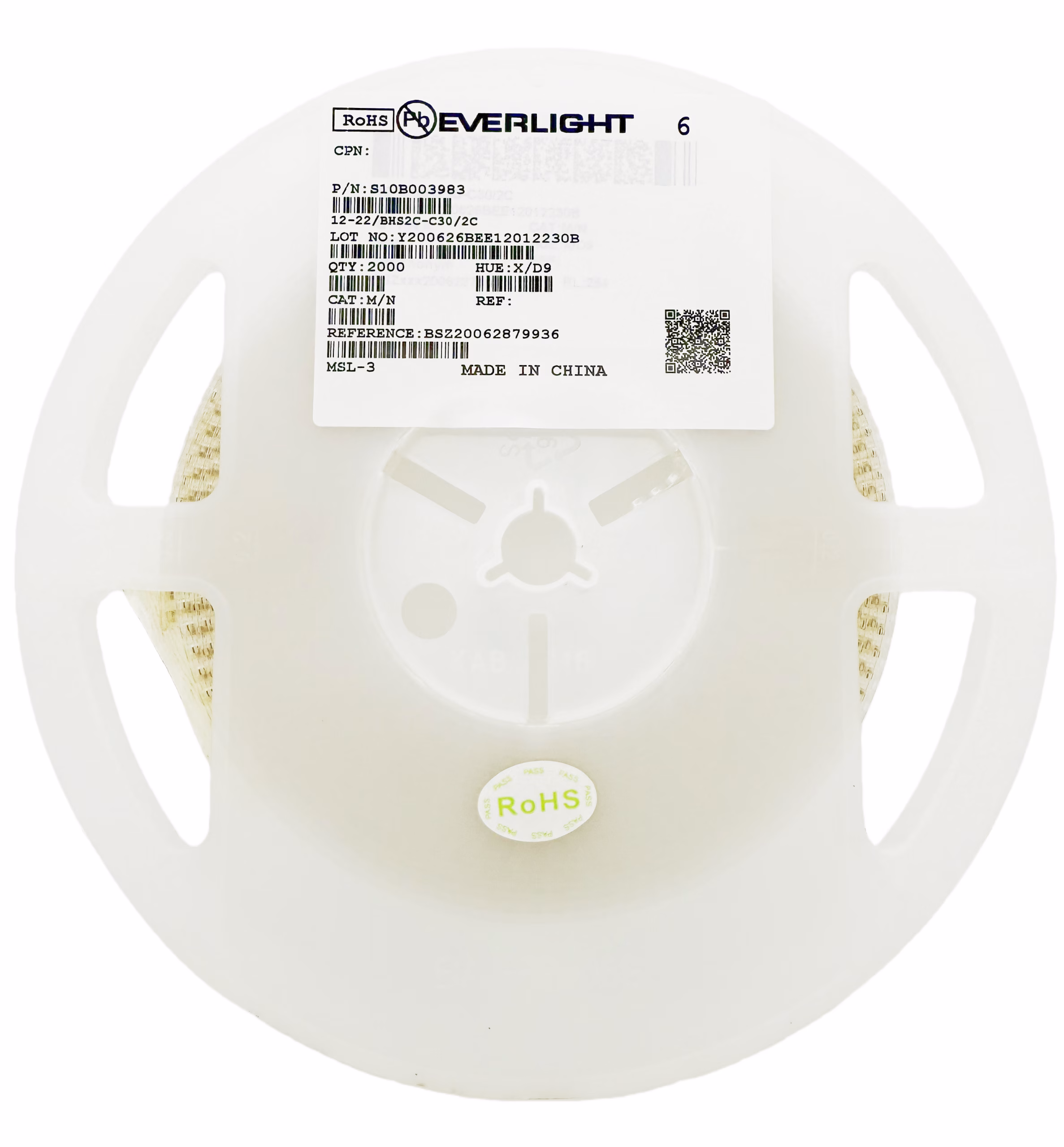

The product is typically packaged in an 8mm tape on a 7-inch diameter reel, a standard format that ensures compatibility with high-speed automatic placement equipment, streamlining the manufacturing process.

Here’s a quick overview of its general features:

Feature	Description	Benefit for Design
Package Type	Surface Mount Device (SMD)	Enables compact layouts and automated assembly.
Size	Much smaller than lead frame types	Reduced board size, higher packing density.
Weight	Lightweight	Ideal for miniature and portable applications.
Color Options	Often multi-color capable (within series)	Versatile for indicators, displays, and backlighting.
Packaging	8mm tape on 7″ reel	Compatible with automatic placement equipment.



3. 12-22/BHS2C-C30/2C Datasheet Download

• 12-22/BHS2C-C30/2C Datasheet: 12-22-BHS2C-C30-2C



4. Design Advantages: Why Small Matters

The compact footprint and lightweight nature of the EVERLIGHT 12-22/BHS2C-C30/2C SMD LED translate into significant advantages for product designers and manufacturers:

Smaller Board Size

The diminutive size of these LEDs allows for printed circuit boards (PCBs) to be considerably smaller. In an era where every component contributes to the overall device size, shrinking the PCB footprint is paramount for creating sleeker, more portable, and aesthetically pleasing products.

Higher Packing Density

With smaller components, more LEDs and other integrated circuits can be packed onto a single board. This higher packing density doesn’t just save space; it can enhance functionality by allowing more features within the same physical dimensions or even smaller ones. This is crucial for complex devices that require numerous indicator lights or extensive backlighting.

Reduced Storage Space

From a logistical standpoint, smaller components mean reduced storage space requirements for inventory . This can lead to more efficient warehouse management, lower operational costs, and faster component retrieval in manufacturing facilities.

Smaller Equipment

Ultimately, the culmination of smaller PCBs and higher packing densities results in the ability to design and produce significantly smaller end equipment. This is a game-changer for industries ranging from consumer electronics to medical devices, where portability and discreet integration are key selling points.

Ideal for Miniature Applications

Its lightweight construction, coupled with its small size, makes the 12-22/BHS2C-C30/2C perfectly suited for miniature applications where every gram and millimeter counts. Think wearable technology, compact smart sensors, or highly integrated automotive interiors.



5. Versatile Applications: Where This LED Shines

The robust features and design advantages of the 12-22/BHS2C-C30/2C LED make it suitable for a wide array of applications across various industries. Its ability to provide efficient and reliable illumination in a small package makes it an indispensable component for:

Backlighting in Dashboards and Switches

Automotive and industrial designs heavily rely on clear, consistent backlighting for user interfaces. The compact nature of this SMD LED allows for precise illumination of control panels, dashboard indicators, and various switches, enhancing visibility and user experience, even in confined spaces.

Telecommunication: Indicator and Backlighting in Telephones and Fax Machines

In telecommunication devices, whether it’s an office phone system or legacy fax machines (where they still exist ), indicators and backlighting are essential for displaying status, button illumination, and network activity. The 12-22/BHS2C-C30/2C offers a reliable solution for these needs, contributing to robust and long-lasting equipment.

Flat Backlight for LCDs, Switches, and Symbols

For small LCDs, graphical displays, and illuminated symbols, uniform and efficient backlighting is critical. This EVERLIGHT LED can be integrated into flat backlight units, providing consistent light distribution for clear readability and appealing aesthetics.

General Use Indicators

Beyond specific applications, the 12-22/BHS2C-C30/2C serves as an excellent general-purpose indicator light in a multitude of electronic components and devices. From power indicators on consumer electronics to status lights on industrial machinery, its reliability and compact size make it a go-to choice.

6. The Price Range of  12-22/BHS2C-C30/2C

According to the latest market conditions, the price range for 12-22/BHS2C-C30/2C is approximately USD0.028 – USD0.048 per piece. The specific price may vary depending on the following factors:

Purchase quantity (bulk purchases typically offer more favorable unit prices)

Supplier and regional differences

We are very strong on Electronic Components Distribution for more than 12 years. We can make sure that all the components from our company are 100% Original and New! Please feel free to contact us if you have any needs.

7. Manufacturing & Compliance: Quality You Can Trust

The manufacturing process and compliance standards of the EVERLIGHT 12-22/BHS2C-C30/2C underscore its reliability and environmental responsibility. As a product from EVERLIGHT, a globally recognized leader in optoelectronics, it benefits from stringent quality control and adheres to international standards.

RoHS Compliant and Pb-free

A crucial aspect of modern electronic components is their environmental footprint. The 12-22/BHS2C-C30/2C is a Pb-free product and remains within the RoHS (Restriction of Hazardous Substances) compliant version. This compliance ensures that the LED does not contain hazardous materials above specified limits, making it safer for both manufacturing personnel and the environment, and suitable for export to regions with strict environmental regulations.

Compatibility with Advanced Assembly Processes

The design of this SMD LED is optimized for compatibility with modern automated manufacturing lines. It is compatible with automatic placement equipment, meaning it can be quickly and accurately placed onto PCBs by machines , significantly increasing production efficiency and reducing labor costs. Furthermore, it is compatible with infrared and vapor phase reflow solder processes, which are standard soldering techniques in surface-mount technology. This compatibility ensures seamless integration into existing production workflows for high-volume manufacturing.

This commitment to compliant and efficient manufacturing practices solidifies the 12-22/BHS2C-C30/2C as a reliable choice for diverse electronic projects, from prototyping to mass production.

8. 12-22/BHS2C-C30/2C FAQs

9. Summary: A Bright Future in a Small Package

The EVERLIGHT 12 -22/BHS2C-C30/2C SMD LED stands out as an exemplary component in the world of optoelectronics. Its small footprint, lightweight design, and multi-color potential (within the series) make it an invaluable asset for designers aiming for miniaturization without compromising on performance. By enabling smaller board sizes, higher packing densities, and compatibility with automated assembly processes, this LED directly contributes to the development of sleeker, more efficient, and environmentally compliant electronic devices.

From illuminating automotive dashboards to serving as critical indicators in telecommunication equipment, the 12-22/BHS2C-C30/2C demonstrates its versatility and reliability. It embodies EVERLIGHT’s commitment to innovation, providing a solution that is not only technologically advanced but also aligns with global environmental standards. As electronics continue their trend towards ever-increasing compactness and integration, components like the 12-22/BHS2 C-C30/2C will remain at the forefront, powering the next generation of smart and sophisticated devices.
