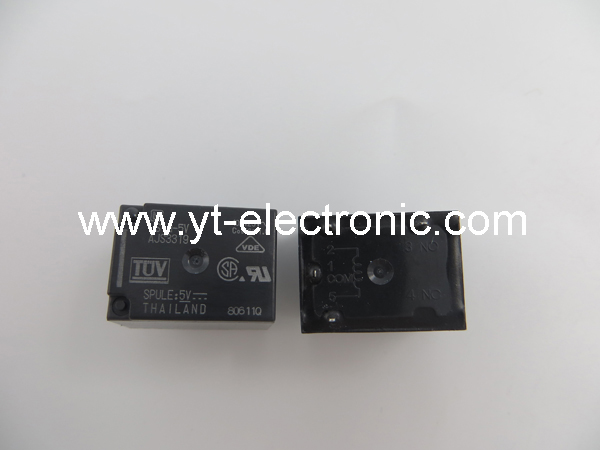

  • JS1A-5V

    JS1A-5V

  • JW2SN-DC12V

    JW2SN-DC12V

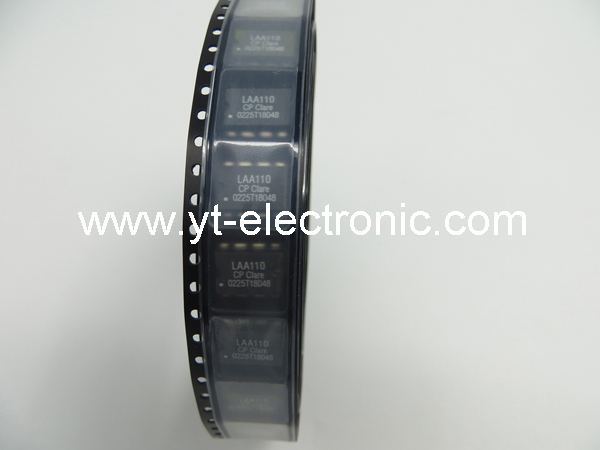

  • LAA110STR

    LAA110STR

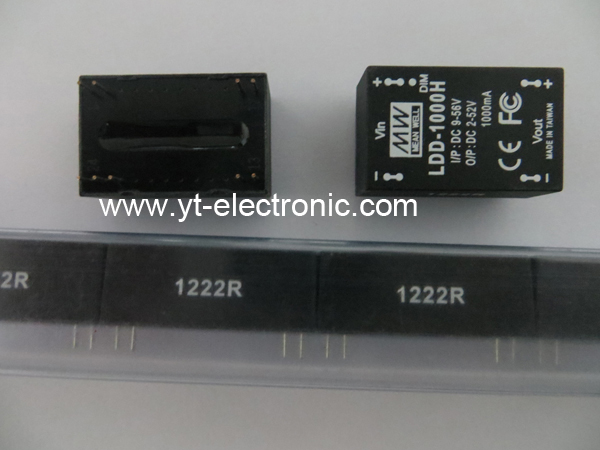

  • LDD-1000H

    LDD-1000H

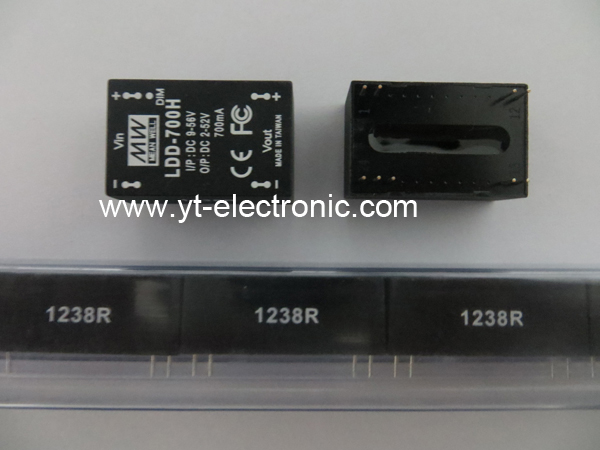

  • LDD-700H

    LDD-700H

  • LMV324IDR

    LMV324IDR

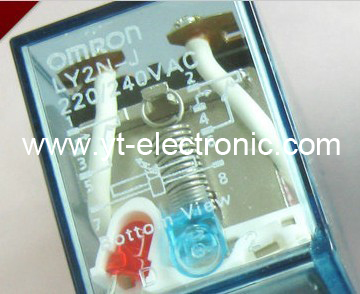

  • LY2N-J-220/240VAC

    LY2N-J-220/240VAC

  • MAX391

    MAX391

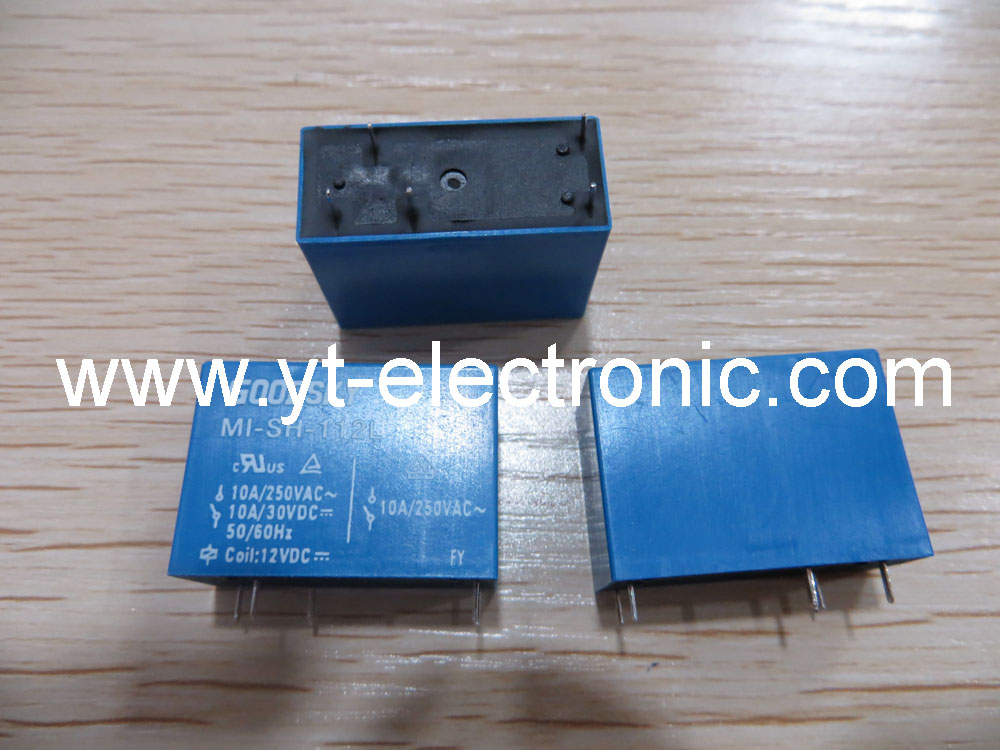

  • MI-SH-112L

    MI-SH-112L

  • MY2N-J-AC240

    MY2N-J-AC240

  • POTENTIO 3PIN 10KB

    POTENTIO 3PIN 10KB

  • REC10-2405S/H2/M

    REC10-2405S/H2/M

  • RT424012

    RT424012

  • RTE24012

    RTE24012

  • RW-SH-112D

    RW-SH-112D

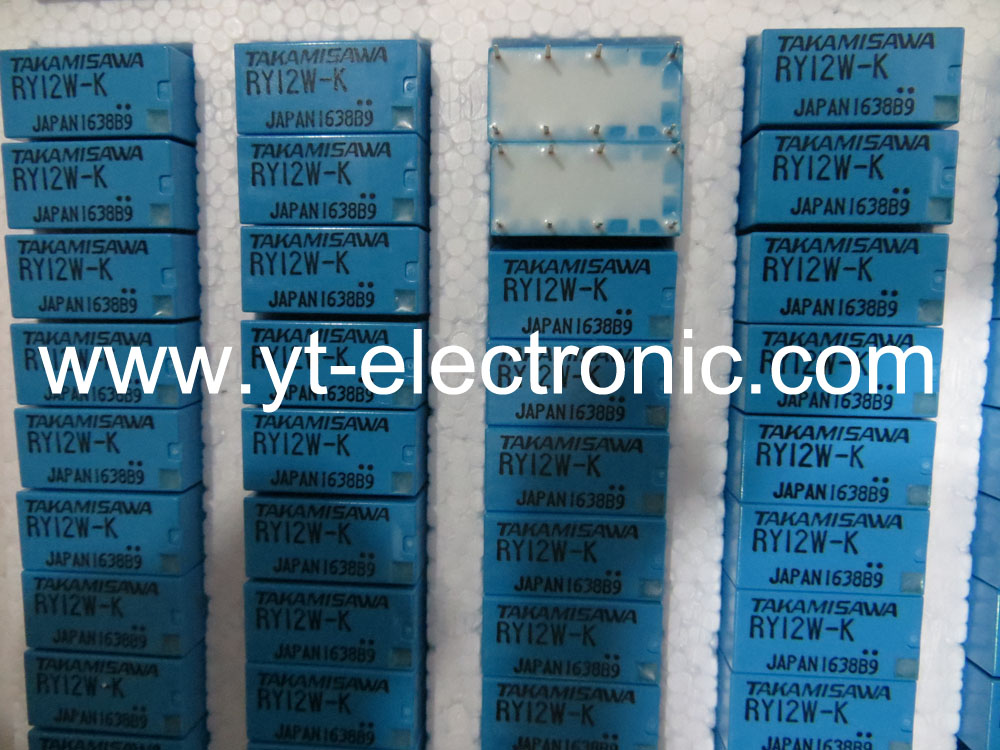

  • RY-12W-K

    RY-12W-K

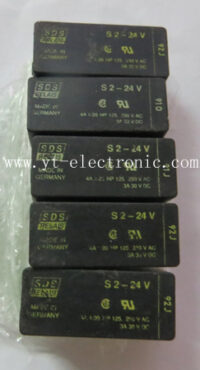

  • S2-24V

    S2-24V

Relays

1. Relays Overview

Relays are electronic switching devices that control the on and off of output circuits through input signals. They can realize the functions of controlling large currents with small currents, isolating strong and weak currents, and switching circuits. Its core functions include automatic adjustment, safety protection, and signal conversion, and are widely used in power systems, automation control, communication equipment, and other fields.

2. How Relays Work?

1) Structure Composition

Electromagnetic relay: It is composed of mechanical parts such as an iron core, coil, armature, and contact spring, and relies on electromagnetic effect to drive the contact action.

Solid-state relay (SSR): It has no mechanical parts and consists of three parts: input circuit (control signal), drive circuit (photoelectric coupling or high-frequency transformer isolation), and output circuit (semiconductor devices such as thyristor, MOSFET, etc.).

2) Working Principle

Electromagnetic type: When the coil is energized, a magnetic field is generated, which attracts the armature to drive the contacts to close or open, thereby realizing the on and off of the circuit.

‌Solid-state type‌: The input control signal is isolated by a photocoupler and then triggers the output semiconductor device to switch the load circuit in a contactless manner‌.

3. What are the Main Types of Relays?

1) ‌Classification by load properties‌

‌AC relay‌: The output end uses a bidirectional thyristor (Triac), which is suitable for AC loads‌.

‌DC relay‌: The output end uses MOSFET or IGBT to control DC loads‌.

2) ‌Classification by technical characteristics‌

‌Electromagnetic relay‌: Low cost, easy wear of contacts, suitable for low-frequency scenarios‌.

‌Solid-state relay (SSR)‌: No contacts, long life, fast response, suitable for high-frequency or high-reliability demand scenarios‌.

‌Thermal reed relay‌: Utilizes the temperature control characteristics of magnetic materials, has a coil-free design, and is suitable for temperature-sensitive scenarios‌.

4. What are Relays Used for?

‌Industrial automation‌: Control high-power equipment such as motors and heaters‌.

‌Power system‌: Realize overload protection, remote control, and signal isolation‌.

‌Automotive electronics‌: used for lighting control, battery management, and other modules.

‌Smart home‌: integrated into temperature control and security systems to achieve weak current control of strong current‌.

5. What are the Differences Between Electromagnetic Relay and SSR?

Characteristics

Electromagnetic relay

Solid-state relay (SSR)

‌Contact life‌‌

About 10⁵~10⁶ times (mechanical wear limit)

10⁷~10⁸ times (contactless design)

Response speed

Millisecond level (mechanical action delay)

Microsecond level (semiconductor device response)

‌Isolation method

Electromagnetic isolation

Photoelectric/high-frequency transformer isolation

‌Anti-interference ability

Weak (susceptible to arc)

Strong (no spark interference)

6. Typical Parameter Examples of Relays

Take model ‌34.51.7.012.0010‌ as an example:

√‌Coil voltage‌: 12VDC

√‌Contact capacity‌: 6A/400VAC (SPDT type)

√‌Response time‌: 5ms for pull-in, 3ms for release

√‌Working temperature‌: -40 °C ~ 85 °C‌.

7. How to Choose Relays?

‌Load Type‌: Prioritize matching of AC/DC load characteristics‌.

‌Environmental Conditions‌: Solid-state relays are preferred in high-temperature or vibration scenarios‌.

‌Life Requirements‌: Contactless SSRs are required for high-frequency operation‌.

8. Typical Brands for Relays

Panasonic

‌Omron relay

‌Schneider

HongFa

SIEMENS

CHNT

9. Relays FAQs

1) What is the Difference between Relay and Contactor?

‌Relay‌: Suitable for low power control (usually ≤10A), small size, mostly used in electronic circuits.

‌Contactor‌: Designed for high current (tens to hundreds of amperes), commonly used in industrial motor control.

2) ‌What are the Features of the Safety Relay? ‌

Larger in appearance, modular design, mostly red/yellow‌.

Adopt safety designs such as forced rail contacts to avoid failure caused by contact welding‌.

3) ‌How to Choose the Coil Voltage? ‌

Need to match the rated voltage range to avoid too high (damage to the coil at high temperature) or too low (cannot work properly). The magnetic latching relay needs to ensure that the excitation pulse width is sufficient to prevent entering the neutral state‌.

4) ‌How to Suppress the Reverse Peak Voltage When the Coil is Powered Off? ‌

Use transient suppression diodes or resistors, but it will extend the release time; if sensitive to the release time, you can balance it with a series resistor‌.

5) ‌What is the Effect of Contact Material on the Load? ‌

‌AgNi+gold Plating‌: Suitable for small loads (such as signal relays)‌.

‌AgSnO₂‌: Suitable for inductive/capacitive loads (inrush current can reach 120A)‌.
